Shen Lan

Onglets principaux

  • Voir(onglet actif)
  • Compare With Previous

Licensed

Licenced to fish in areas:

  • Subarea 48.1
  • Subarea 48.2
  • Subarea 48.3
  • Subarea 48.4
Port Photo:
Starboard Photo:
Stern Photo:

View all available images

Effective Date:
30 mai 2024
CCAMLR Vessel ID:
104925
Owner:
Jiangsu Sunline Deep Sea Fishery Co., Ltd
Operator:
Jiangsu Sunline Deep Sea Fishery Co., Ltd
Callsign:
BZVK5
Built in Year:
2020
Registration Number:
19JF520
IMO Number:
9849332
Built at Location:
CSSC HUANGPU WENCHONG SHIPBUILDING COMPANY LIMITED, Guangzhou, China
Flag:
China
Crew Count:
99
Beam:
21.60m
Gross Tonnage:
10788.00t
Length:
111.20m
Engine Power:
8000.00kW
Carrying Capacity:
3236.00t
Fish Holds Capacity:
4904.00m3
Fish Holds Count:
3
Port of Registry:
Lianyungang
External Markings:

Name: SHEN LAN

Call sign:BZVK5

VMS Details:

INM-C

Manufacturer： Thrane & Thrane

Model：SAILOR 6110

Serial number：18152454

ID Number：441204271

Manufacturer： Collecte Localisation Satellites

Model：TRITON

Serial number：TM0000121625

ID Number：519345

Fishing Master:
Chen Jian, Lu Jian Qiang, Chinese
Comms Details:

Tel: 0086 17499950509

e-mail:master [dot] shenlan [at] cmigroup [dot] com [dot] cn

Ice Classification:
B1
  • History
  • Licences
  • Fishing Gear

History

Effective From Vessel Name Callsign Signaler un contenu Owner(s)
30 mai 2024 Shen Lan BZVK5 China Jiangsu Sunline Deep Sea Fishery Co., Ltd
22 mai 2023 - 30 mai 2024 Shen Lan BZVK5 China Jiangsu Sunline Deep Sea Fishery Co., Ltd
27 mai 2022 - 22 mai 2023 Shen Lan BZVK5 China Jiangsu Sunline Deep Sea Fishery Co., Ltd
25 mai 2021 - 27 mai 2022 Shen Lan BZUK5 China
29 mai 2020 - 25 mai 2021 Shen Lan BZUK5 China Jiangsu Sunline Deep Sea Fishery Co. Ltd
28 mai 2020 - 29 mai 2020 Shen Lan BZUK5 China Jiangsu Sunline Deep Sea Fishery Co. Ltd
27 mai 2020 - 28 mai 2020 Shenlan BZUK5 China Jiangsu Sunline Deep Sea Fishery Co. Ltd
20 juin 2019 - 27 mai 2020 Shen Lan BZUK5 China Jiangsu Sunline Deep Sea Fishery Co. Ltd
31 mai 2019 - 20 juin 2019 Shen Lan BZUK5 China Jiangsu Sunline Deep Sea Fishery Co. Ltd
31 mai 2019 Shen Lan BZUK5 China Jiangsu Sunline Deep Sea Fishery Co. Ltd
30 mai 2019 - 31 mai 2019 Shen Lan BZUK5 China Jiangsu Sunline Deep Sea Fishery Co. Ltd
30 mai 2019 Shen Lan China Jiangsu Sunline Deep Sea Fishery Co. Ltd
15 mai 2019 - 30 mai 2019 Shen Lan China

Licences

Authority Period Bottom Fishing Authorised Target Species Areas
China 01 déc 2024 - 30 nov 2025 Not Applicable Euphausia superba Subarea 48.1, Subarea 48.2, Subarea 48.3, Subarea 48.4
China 08 déc 2023 - 30 nov 2024 Not Applicable Euphausia superba Subarea 48.1, Subarea 48.2, Subarea 48.3, Subarea 48.4
China 01 déc 2022 - 30 nov 2023 Not Applicable Euphausia superba Subarea 48.1, Subarea 48.2, Subarea 48.3, Subarea 48.4
China 28 déc 2021 - 30 nov 2022 Not Applicable Euphausia superba Subarea 48.1, Subarea 48.2, Subarea 48.3, Subarea 48.4
Gear Effective From
Midwater Beam Trawl
Net-mouth height:
2m
Net-mouth width:
4m
Total net length:
8m
Codend mesh size:
10mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net

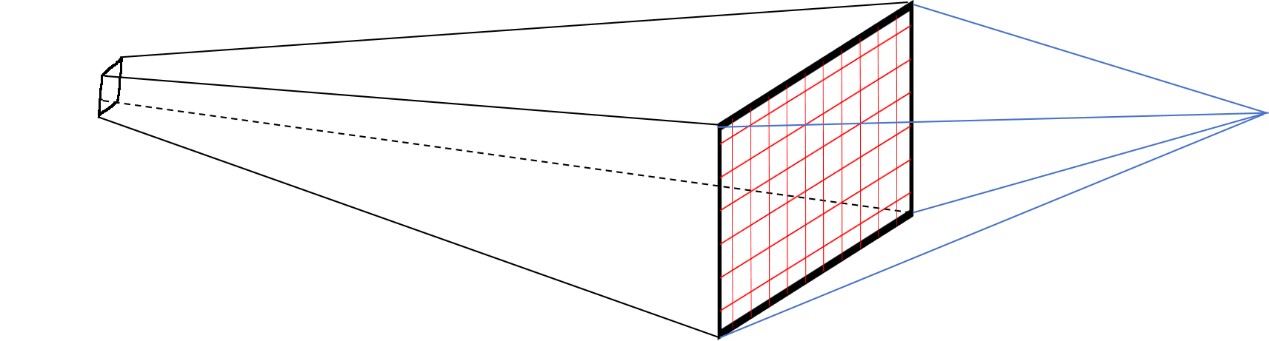

Mammal exclusion device diagram:
download attachment 123485-Net 5_Marine Mammal exclusion device_Shen Lan_2024-2025.jpg

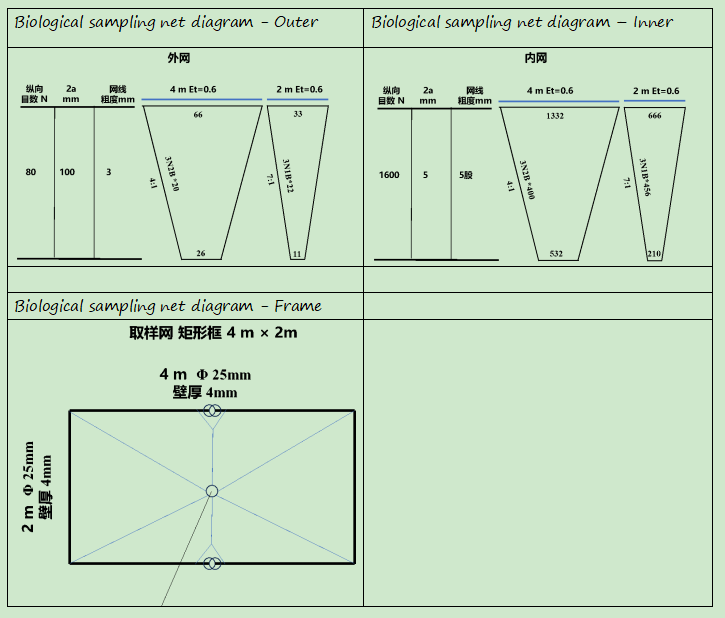

Gear diagram:
download attachment 123485-net-5-diagrambiological-sampling-netshen-lan2024-2025.png
 31 mai 2024
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 120828-Net 1_Marine mammal exclusion device_Shen Lan_2023-2024.jpg
Gear diagram:
download attachment 120828-net1-gear-diagramshen-lan2023-2024.jpg
 01 déc 2023
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 126449-Net3-Marine Mammal Exclusion Device-Shen Lan-2025-2026.png
Gear diagram:
download attachment 126449-net3-diagram-shen-lan-2025-2026.jpg
 01 déc 2025
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 104959-Net1-Mammal exclusion device diagram-Shen Lan-2019.jpg
Gear diagram:
download attachment 104959-net1-gear-diagram-shen-lan-2019.jpg
 15 mai 2019 - 30 nov 2022
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
123m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 118461-Net 4_Marine mammal exclusion device_Shen Lan_2022-2023.png
Gear diagram:
download attachment 118461-net-4shen-lan2022-2023.png
 01 déc 2021
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
123m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 123484-Net 4_Marine mammal exclusion device_Shen Lan_2024-2025.png
Gear diagram:
download attachment 123484-net-4diagramshen-lan2024-2025.png
 01 déc 2024
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 118463-Net 3_Marine mammal exclusion device_Shen Lan_2022-2023.png
Gear diagram:
download attachment 118463-net-3shen-lan2022-2023.png
 01 déc 2021
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net

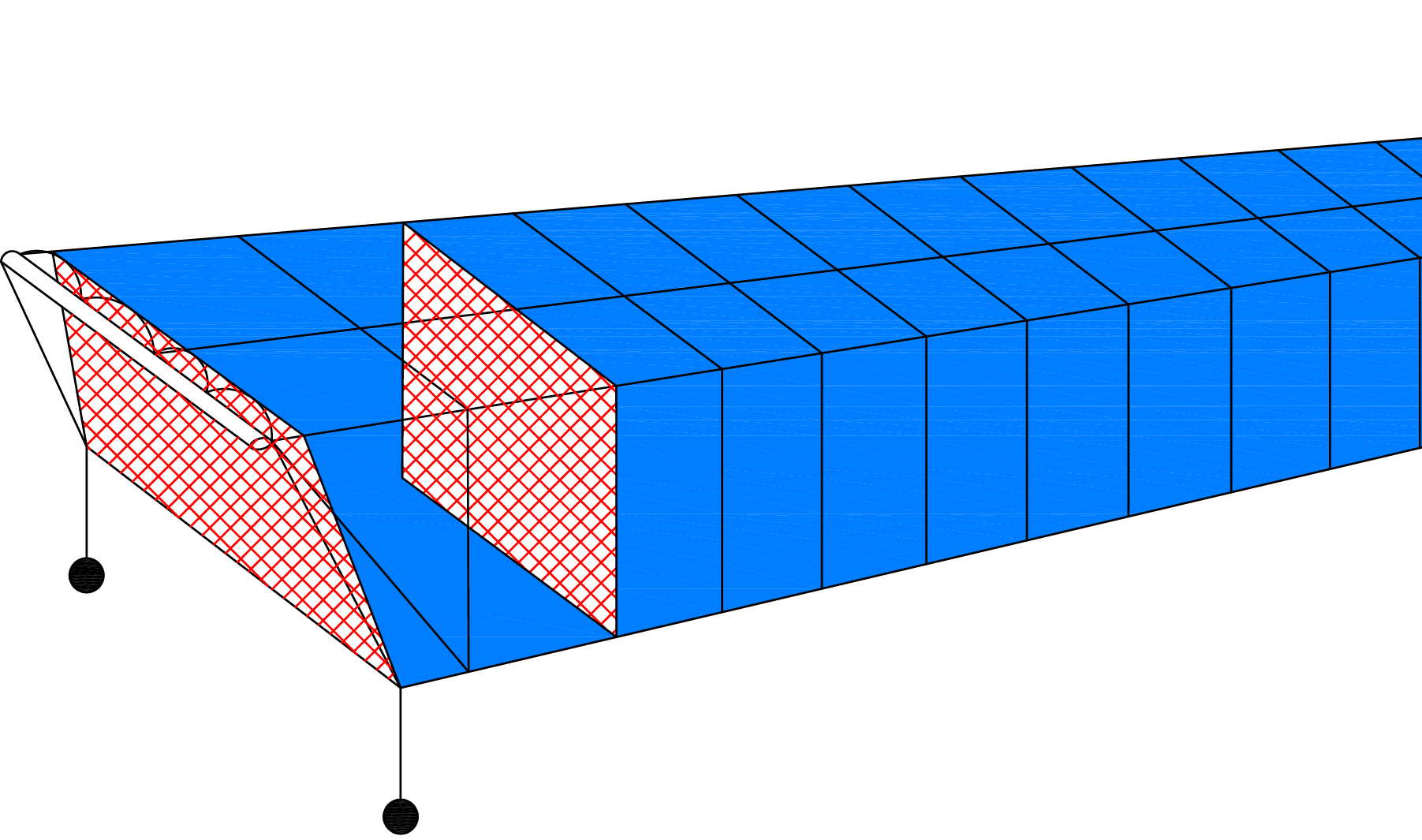

Mammal exclusion device diagram:
download attachment 126448-Net1-Marine Mammal Exclusion Device-Shen Lan-2025-2026.png

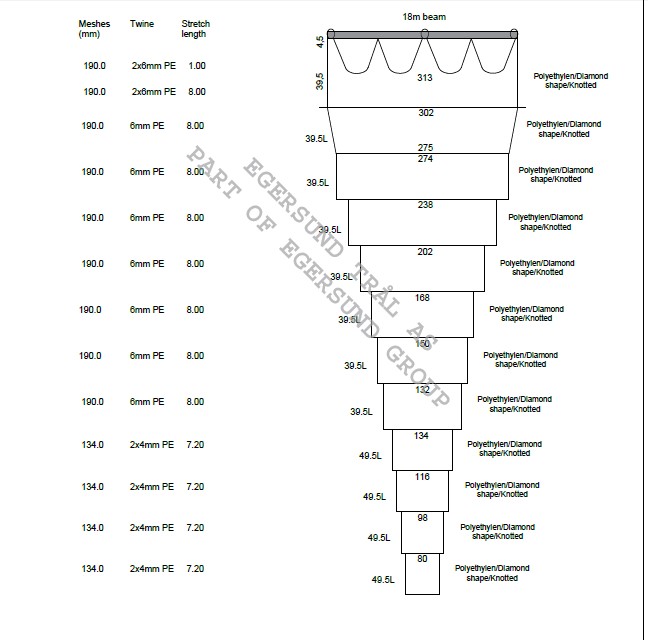

Gear diagram:
download attachment 126448-net1-diagram-shen-lan-2025-2026.jpg
 01 déc 2025
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 120829-Net 3_Marine mammal exclusion device_Shen Lan_2023-2024.jpg
Gear diagram:
download attachment 120829-net3-gear-diagramshen-lan2023-2024.jpg
 01 déc 2023
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 123481-Net 1_Marine mammal exclusion device_Shen Lan_2024-2025.jpg
Gear diagram:
download attachment 123481-net-1-diagramshen-lan2024-2025.jpg
 01 déc 2024
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 123483-Net 3_Marine mammal exclusion device_Shen Lan_2024-2025.jpg
Gear diagram:
download attachment 123483-net-3-diagramshen-lan2024-2025.jpg
 01 déc 2024
Midwater Otter Trawl
Net-mouth height:
2m
Net-mouth width:
4m
Total net length:
8m
Codend mesh size:
10mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 123296-Net4_Marine Mammal exclusion device diagram_Shen Lan_2023-2024.jpg
Gear diagram:
download attachment 123296-net-4-biological-sampling-net-diagram.docx
 07 mai 2024
Midwater Otter Trawl
Net-mouth height:
30m
Net-mouth width:
30m
Total net length:
160m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
42m
Codend mesh size:
11mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 126452-Net7-Mammal exclusion device diagram-Shen Lan-2025-2026.pdf
Gear diagram:
download attachment 126452-net7-diagram-shen-lan-2025-2026.pdf
 01 déc 2025
Midwater Otter Trawl
Net-mouth height:
18m
Net-mouth width:
23m
Total net length:
168.8m
Codend-mouth height:
2m
Codend-mouth width:
2m
Codend length:
24m
Codend mesh size:
11mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 123482-Net 2_Marine mammal exclusion device_Shen Lan_2024-2025.png
Gear diagram:
download attachment 123482-net-2-diagramshen-lan2024-2025.png
 01 déc 2024
Midwater Otter Trawl
Net-mouth height:
24m
Net-mouth width:
28m
Total net length:
164m
Codend-mouth height:
2m
Codend-mouth width:
2m
Codend length:
24m
Codend mesh size:
11mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 126450-Net6-Marine Mammal Exclusion Device-Shen Lan-2025-2026.pdf
Gear diagram:
download attachment 126450-net6-diagram-shen-lan-2025-2026.pdf
 01 déc 2025
Midwater Otter Trawl
Net-mouth height:
18m
Net-mouth width:
23m
Total net length:
162m
Codend-mouth height:
2m
Codend-mouth width:
2m
Codend length:
24m
Codend mesh size:
11mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 104960-Net2-Mammal exclusion device diagram-Shen Lan-2019.jpg
Gear diagram:
download attachment 104960-net2-gear-diagram-shen-lan-2019.jpg
 15 mai 2019 - 30 nov 2022
Midwater Otter Trawl
Net-mouth height:
18m
Net-mouth width:
23m
Total net length:
168.8m
Codend-mouth height:
2m
Codend-mouth width:
2m
Codend length:
24m
Codend mesh size:
11mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 118462-Net 2_Marine mammal exclusion device_Shen Lan_2022-2023.png
Gear diagram:
download attachment 118462-net-2shen-lan2022-2023.png
 01 déc 2022 - 30 nov 2023
This page was last modified on 31 May 2024

Nous contacter

E-mail: ccamlr [at] ccamlr [dot] org
Téléphone: +61 3 6210 1111
Fax: +61 3 6224 8744
Adresse: 181 Macquarie Street, Hobart, 7000, Tasmania, Australia



Liens rapides

  • Postes vacants
  • Liste des navires autorisés
  • Liste officielle des mesures de conservation en vigueur 2024/25
  • Accomplissements de la CCAMLR

Current and Upcoming Meetings

  • WG-SAM-2025
  • WG-ASAM-2025
  • WG-EMM-2025
  • WG-FSA-2025
  • SCIC-2025

Footer Links French

  • S'identifier
  • Messagerie
  • e-groupes CCAMLR
  • Assistance technique
  • Groupes de discussion de la CCAMLR
  • Droits d’auteur
  • Clause de non-responsabilité et politique de confidentialité
  • Plan du site
© Copyright - the Commission for the Conservation of Antarctic Marine Living Resources 2025, Tous droits réservés.  |  Haut de la page  |  Site créé par Eighty Options
