Shen Lan

Главные вкладки

  • Просмотр(активная вкладка)
  • Compare With Previous

Licensed

Licenced to fish in areas:

  • Subarea 48.1
  • Subarea 48.2
  • Subarea 48.3
  • Subarea 48.4
Port Photo:
Starboard Photo:
Stern Photo:

View all available images

Effective Date:
30 мая 2024
CCAMLR Vessel ID:
104925
Owner:
Jiangsu Sunline Deep Sea Fishery Co., Ltd
Operator:
Jiangsu Sunline Deep Sea Fishery Co., Ltd
Callsign:
BZVK5
Built in Year:
2020
Registration Number:
19JF520
IMO Number:
9849332
Built at Location:
CSSC HUANGPU WENCHONG SHIPBUILDING COMPANY LIMITED, Guangzhou, China
Flag:
China
Crew Count:
99
Beam:
21.60m
Gross Tonnage:
10788.00t
Length:
111.20m
Engine Power:
8000.00kW
Carrying Capacity:
3236.00t
Fish Holds Capacity:
4904.00m3
Fish Holds Count:
3
Port of Registry:
Lianyungang
External Markings:

Name: SHEN LAN

Call sign:BZVK5

VMS Details:

INM-C

Manufacturer: Thrane & Thrane

Model:SAILOR 6110

Serial number:18152454

ID Number:441204271

Manufacturer: Collecte Localisation Satellites

Model:TRITON

Serial number:TM0000121625

ID Number:519345

Fishing Master:
Chen Jian, Lu Jian Qiang, Chinese
Comms Details:

Tel: 0086 17499950509

e-mail:master [dot] shenlan [at] cmigroup [dot] com [dot] cn

Ice Classification:
B1
  • History
  • Licences
  • Fishing Gear

History

Effective From Vessel Name Callsign Пометить флагом Owner(s)
30 мая 2024 Shen Lan BZVK5 China Jiangsu Sunline Deep Sea Fishery Co., Ltd
с 22 мая 2023 по 30 мая 2024 Shen Lan BZVK5 China Jiangsu Sunline Deep Sea Fishery Co., Ltd
с 27 мая 2022 по 22 мая 2023 Shen Lan BZVK5 China Jiangsu Sunline Deep Sea Fishery Co., Ltd
с 25 мая 2021 по 27 мая 2022 Shen Lan BZUK5 China
с 29 мая 2020 по 25 мая 2021 Shen Lan BZUK5 China Jiangsu Sunline Deep Sea Fishery Co. Ltd
с 28 мая 2020 по 29 мая 2020 Shen Lan BZUK5 China Jiangsu Sunline Deep Sea Fishery Co. Ltd
с 27 мая 2020 по 28 мая 2020 Shenlan BZUK5 China Jiangsu Sunline Deep Sea Fishery Co. Ltd
с 20 июн 2019 по 27 мая 2020 Shen Lan BZUK5 China Jiangsu Sunline Deep Sea Fishery Co. Ltd
с 31 мая 2019 по 20 июн 2019 Shen Lan BZUK5 China Jiangsu Sunline Deep Sea Fishery Co. Ltd
31 мая 2019 Shen Lan BZUK5 China Jiangsu Sunline Deep Sea Fishery Co. Ltd
с 30 мая 2019 по 31 мая 2019 Shen Lan BZUK5 China Jiangsu Sunline Deep Sea Fishery Co. Ltd
30 мая 2019 Shen Lan China Jiangsu Sunline Deep Sea Fishery Co. Ltd
с 15 мая 2019 по 30 мая 2019 Shen Lan China

Licences

Authority Period Bottom Fishing Authorised Target Species Areas
China с 01 дек 2024 по 30 ноя 2025 Not Applicable Euphausia superba Subarea 48.1, Subarea 48.2, Subarea 48.3, Subarea 48.4
China с 08 дек 2023 по 30 ноя 2024 Not Applicable Euphausia superba Subarea 48.1, Subarea 48.2, Subarea 48.3, Subarea 48.4
China с 01 дек 2022 по 30 ноя 2023 Not Applicable Euphausia superba Subarea 48.1, Subarea 48.2, Subarea 48.3, Subarea 48.4
China с 28 дек 2021 по 30 ноя 2022 Not Applicable Euphausia superba Subarea 48.1, Subarea 48.2, Subarea 48.3, Subarea 48.4
Gear Effective From
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 123483-Net 3_Marine mammal exclusion device_Shen Lan_2024-2025.jpg
Gear diagram:
download attachment 123483-net-3-diagramshen-lan2024-2025.jpg
01 дек 2024
Midwater Beam Trawl
Net-mouth height:
2m
Net-mouth width:
4m
Total net length:
8m
Codend mesh size:
10mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 123485-Net 5_Marine Mammal exclusion device_Shen Lan_2024-2025.jpg
Gear diagram:
download attachment 123485-net-5-diagrambiological-sampling-netshen-lan2024-2025.png
31 мая 2024
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 120828-Net 1_Marine mammal exclusion device_Shen Lan_2023-2024.jpg
Gear diagram:
download attachment 120828-net1-gear-diagramshen-lan2023-2024.jpg
01 дек 2023
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 126449-Net3-Marine Mammal Exclusion Device-Shen Lan-2025-2026.png
Gear diagram:
download attachment 126449-net3-diagram-shen-lan-2025-2026.jpg
01 дек 2025
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net

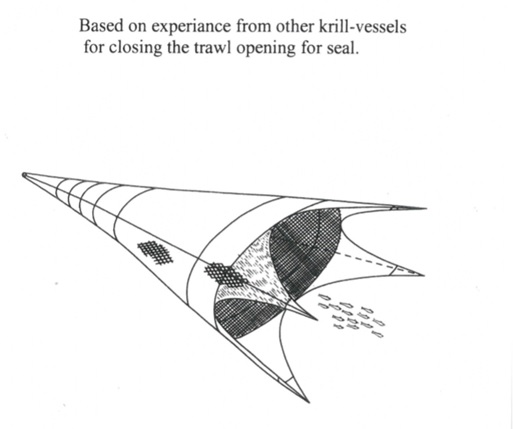

Mammal exclusion device diagram:
download attachment 104959-Net1-Mammal exclusion device diagram-Shen Lan-2019.jpg
Gear diagram:
download attachment 104959-net1-gear-diagram-shen-lan-2019.jpg
с 15 мая 2019 по 30 ноя 2022
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
123m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 118461-Net 4_Marine mammal exclusion device_Shen Lan_2022-2023.png
Gear diagram:
download attachment 118461-net-4shen-lan2022-2023.png
01 дек 2021
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
123m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 123484-Net 4_Marine mammal exclusion device_Shen Lan_2024-2025.png
Gear diagram:
download attachment 123484-net-4diagramshen-lan2024-2025.png
01 дек 2024
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 118463-Net 3_Marine mammal exclusion device_Shen Lan_2022-2023.png
Gear diagram:
download attachment 118463-net-3shen-lan2022-2023.png
01 дек 2021
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 126448-Net1-Marine Mammal Exclusion Device-Shen Lan-2025-2026.png
Gear diagram:
download attachment 126448-net1-diagram-shen-lan-2025-2026.jpg
01 дек 2025
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 120829-Net 3_Marine mammal exclusion device_Shen Lan_2023-2024.jpg
Gear diagram:
download attachment 120829-net3-gear-diagramshen-lan2023-2024.jpg
01 дек 2023
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 123481-Net 1_Marine mammal exclusion device_Shen Lan_2024-2025.jpg
Gear diagram:
download attachment 123481-net-1-diagramshen-lan2024-2025.jpg
01 дек 2024
Midwater Otter Trawl
Net-mouth height:
18m
Net-mouth width:
23m
Total net length:
168.8m
Codend-mouth height:
2m
Codend-mouth width:
2m
Codend length:
24m
Codend mesh size:
11mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 118462-Net 2_Marine mammal exclusion device_Shen Lan_2022-2023.png

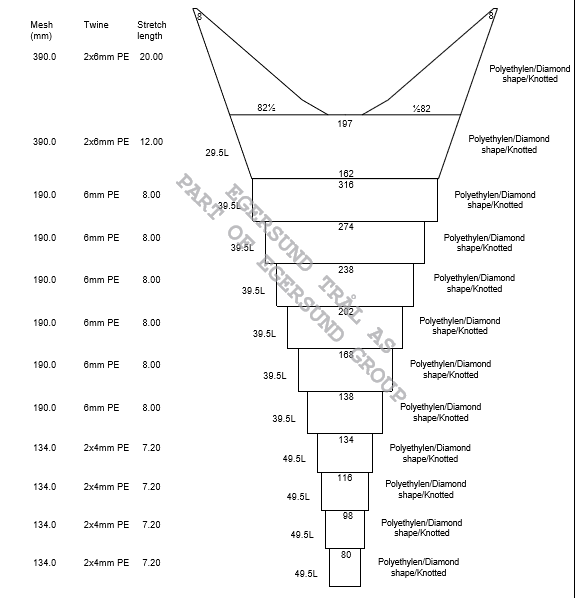

Gear diagram:
download attachment 118462-net-2shen-lan2022-2023.png
с 01 дек 2022 по 30 ноя 2023
Midwater Otter Trawl
Net-mouth height:
2m
Net-mouth width:
4m
Total net length:
8m
Codend mesh size:
10mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 123296-Net4_Marine Mammal exclusion device diagram_Shen Lan_2023-2024.jpg
Gear diagram:
download attachment 123296-net-4-biological-sampling-net-diagram.docx
07 мая 2024
Midwater Otter Trawl
Net-mouth height:
30m
Net-mouth width:
30m
Total net length:
160m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
42m
Codend mesh size:
11mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 126452-Net7-Mammal exclusion device diagram-Shen Lan-2025-2026.pdf
Gear diagram:
download attachment 126452-net7-diagram-shen-lan-2025-2026.pdf
01 дек 2025
Midwater Otter Trawl
Net-mouth height:
18m
Net-mouth width:
23m
Total net length:
168.8m
Codend-mouth height:
2m
Codend-mouth width:
2m
Codend length:
24m
Codend mesh size:
11mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 123482-Net 2_Marine mammal exclusion device_Shen Lan_2024-2025.png
Gear diagram:
download attachment 123482-net-2-diagramshen-lan2024-2025.png
01 дек 2024
Midwater Otter Trawl
Net-mouth height:
24m
Net-mouth width:
28m
Total net length:
164m
Codend-mouth height:
2m
Codend-mouth width:
2m
Codend length:
24m
Codend mesh size:
11mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 126450-Net6-Marine Mammal Exclusion Device-Shen Lan-2025-2026.pdf
Gear diagram:
download attachment 126450-net6-diagram-shen-lan-2025-2026.pdf
01 дек 2025
Midwater Otter Trawl
Net-mouth height:
18m
Net-mouth width:
23m
Total net length:
162m
Codend-mouth height:
2m
Codend-mouth width:
2m
Codend length:
24m
Codend mesh size:
11mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 104960-Net2-Mammal exclusion device diagram-Shen Lan-2019.jpg
Gear diagram:
download attachment 104960-net2-gear-diagram-shen-lan-2019.jpg
с 15 мая 2019 по 30 ноя 2022
This page was last modified on 31 May 2024

Контакты

E-mail: ccamlr [at] ccamlr [dot] org
Телефон: +61 3 6210 1111
Факс: +61 3 6224 8744
Адрес: 181 Macquarie Street, Hobart, 7000, Tasmania, Australia



Быстрые ссылки

  • Вакансии
  • Лицензированные суда
  • Список действующих мер по сохранению 2024/25 г.
  • Достижения АНТКОМ

Current and Upcoming Meetings

  • WG-SAM-2025
  • WG-ASAM-2025
  • WG-EMM-2025

Footer Links Russian

  • Вход
  • Веб-почта
  • Обсуждения АНТКОМ
  • э-группы АНТКОМ
  • Служба поддержки
  • Авторское право
  • Отказ от ответственности и конфиденциальность
  • Карта веб-сайта
© Copyright - the Commission for the Conservation of Antarctic Marine Living Resources 2025, Все права защищены.  |  Наверх  |  Сайт разработан компанией Eighty Options
